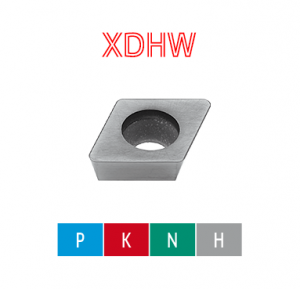

XDHW
1110905P2
INSERT XDHW 040105 PHD103

  • P
  • M
  • K
  • N
  • S
  • H
Coating
Diamond CVD
ISO Field
N
IC (inch)
0.157
l (inch)
0.157
R (inch)
0.019
S (inch)
0.063
Tolerance Class Insert
H
Work hand
R;L
Z efective cutting edge
2
Cutting conditions
  • N
Vc(sfm)
984
3280
fz(in/t)
0,004
0,008
ap(in)
0,008
0,031
Add
1110573M5
INSERT XDHW 040110 PH0103

  • P
    01-05
  • M
  • K
  • N
  • S
  • H
Cutting conditions
  • P
Vc(sfm)
295
492
fz(in/t)
0,004
0,008
ap(in)
0,008
0,031
Add
1110573M6
INSERT XDHW 040110 PH6103

  • P
    01-05
  • M
  • K
  • N
  • S
  • H
    01-05
Coating
PVD
IC (inch)
0.157
l (inch)
0.157
R (inch)
0.039
S (inch)
0.063
Tolerance Class Insert
H
Work hand
L,R
Z efective cutting edge
2
Cutting conditions
  • H
Vc(sfm)
394
787
fz(in/t)
0,004
0,008
ap(in)
0,008
0,031
Add
  • P
Vc(sfm)
590
984
fz(in/t)
0,004
0,008
ap(in)
0,008
0,031
Add
111057378
INSERT XDHW 040110 PH6125

  • P
    20-30
  • M
  • K
  • N
  • S
  • H
Coating
PVD
ISO Field
P,S
IC (inch)
0.157
l (inch)
0.157
R (inch)
0.039
S (inch)
0.063
Tolerance Class Insert
H
Work hand
L,R
Z efective cutting edge
2
Cutting conditions
  • P
Vc(sfm)
426
623
fz(in/t)
0,004
0,008
ap(in)
0,008
0,031
Add
111057354
INSERT XDHW 040110 PH6910

  • P
    05-10
  • M
  • K
    05-10
  • N
  • S
  • H
Coating
PVD
ISO Field
P,K,S
IC (inch)
0.157
l (inch)
0.157
R (inch)
0.039
S (inch)
0.063
Tolerance Class Insert
H
Work hand
L,R
Z efective cutting edge
2
Cutting conditions
  • K
Vc(sfm)
295
853
fz(in/t)
0,004
0,008
ap(in)
0,008
0,031
Add
  • P
Vc(sfm)
492
820
fz(in/t)
0,004
0,008
ap(in)
0,008
0,031
Add
1110573P2
INSERT XDHW 040110 PHD103

  • P
  • M
  • K
  • N
  • S
  • H
Coating
Diamond CVD
ISO Field
H
IC (inch)
0.157
l (inch)
0.157
R (inch)
0.039
S (inch)
0.063
Tolerance Class Insert
H
Work hand
R;L
Z efective cutting edge
2
Cutting conditions
  • N
Vc(sfm)
984
3280
fz(in/t)
0,004
0,008
ap(in)
0,008
0,031
Add
1110532M6
INSERT XDHW 060210 PH6103

  • P
    01-05
  • M
  • K
  • N
  • S
  • H
    01-05
Coating
PVD
IC (inch)
0.256
l (inch)
0.244
R (inch)
0.039
S (inch)
0.094
Tolerance Class Insert
H
Work hand
L,R
Z efective cutting edge
2
Cutting conditions
  • H
Vc(sfm)
394
787
fz(in/t)
0,004
0,012
ap(in)
0,008
0,039
Add
  • P
Vc(sfm)
590
984
fz(in/t)
0,004
0,012
ap(in)
0,008
0,039
Add
111053278
INSERT XDHW 060210 PH6125

  • P
    20-30
  • M
  • K
  • N
  • S
  • H
Coating
PVD
ISO Field
P,S
IC (inch)
0.256
l (inch)
0.244
R (inch)
0.039
S (inch)
0.094
Tolerance Class Insert
H
Work hand
L,R
Z efective cutting edge
2
Cutting conditions
  • P
Vc(sfm)
426
623
fz(in/t)
0,004
0,012
ap(in)
0,008
0,039
Add
111053286
INSERT XDHW 060210 PH6135

  • P
    30-40
  • M
  • K
  • N
  • S
  • H
Coating
PVD
ISO Field
P
IC (inch)
0.256
l (inch)
0.244
R (inch)
0.039
S (inch)
0.094
Tolerance Class Insert
H
Work hand
L,R
Z efective cutting edge
2
Cutting conditions
  • P
Vc(sfm)
394
590
fz(in/t)
0,004
0,012
ap(in)
0,008
0,039
Add
111053254
INSERT XDHW 060210 PH6910

  • P
    05-10
  • M
  • K
    05-10
  • N
  • S
  • H
Coating
PVD
ISO Field
P,K,S
IC (inch)
0.256
l (inch)
0.244
R (inch)
0.039
S (inch)
0.094
Tolerance Class Insert
H
Work hand
L,R
Z efective cutting edge
2
Cutting conditions
  • K
Vc(sfm)
295
853
fz(in/t)
0,004
0,012
ap(in)
0,008
0,039
Add
  • P
Vc(sfm)
492
820
fz(in/t)
0,004
0,012
ap(in)
0,008
0,039
Add
1110532P2
INSERT XDHW 060210 PHD103

  • P
  • M
  • K
  • N
  • S
  • H
Coating
Diamond CVD
ISO Field
N
IC (inch)
0.256
l (inch)
0.244
R (inch)
0.039
S (inch)
0.094
Tolerance Class Insert
H
Work hand
L;R
Z efective cutting edge
2
Cutting conditions
  • N
Vc(sfm)
984
3280
fz(in/t)
0,004
0,012
ap(in)
0,008
0,039
Add
1110565M6
INSERT XDHW 10T310 PH6103

  • P
    01-05
  • M
  • K
  • N
  • S
  • H
    01-05
Coating
PVD
IC (inch)
0.394
l (inch)
0.390
R (inch)
0.039
S (inch)
0.156
Tolerance Class Insert
H
Work hand
L,R
Z efective cutting edge
2
Cutting conditions
  • H
Vc(sfm)
394
787
fz(in/t)
0,004
0,014
ap(in)
0,008
0,039
Add
  • P
Vc(sfm)
590
984
fz(in/t)
0,004
0,014
ap(in)
0,008
0,039
Add
111056578
INSERT XDHW 10T310 PH6125

  • P
    20-30
  • M
  • K
  • N
  • S
  • H
Coating
PVD
ISO Field
P,S
IC (inch)
0.394
l (inch)
0.390
R (inch)
0.039
S (inch)
0.156
Tolerance Class Insert
H
Work hand
L,R
Z efective cutting edge
2
Cutting conditions
  • P
Vc(sfm)
426
623
fz(in/t)
0,004
0,014
ap(in)
0,008
0,039
Add
111056586
INSERT XDHW 10T310 PH6135

  • P
    30-40
  • M
  • K
  • N
  • S
  • H
Coating
PVD
ISO Field
P
IC (inch)
0.394
l (inch)
0.390
R (inch)
0.039
S (inch)
0.156
Tolerance Class Insert
H
Work hand
L,R
Z efective cutting edge
2
Cutting conditions
  • P
Vc(sfm)
394
590
fz(in/t)
0,004
0,014
ap(in)
0,008
0,039
Add
111056554
INSERT XDHW 10T310 PH6910

  • P
    05-10
  • M
  • K
    05-10
  • N
  • S
  • H
Coating
PVD
ISO Field
P,K,S
IC (inch)
0.394
l (inch)
0.390
R (inch)
0.039
S (inch)
0.156
Tolerance Class Insert
H
Work hand
L,R
Z efective cutting edge
2
Cutting conditions
  • K
Vc(sfm)
295
853
fz(in/t)
0,004
0,014
ap(in)
0,008
0,039
Add
  • P
Vc(sfm)
492
820
fz(in/t)
0,004
0,014
ap(in)
0,008
0,039
Add
111056568
INSERT XDHW 10T310 PH6920

  • P
  • M
  • K
  • N
  • S
  • H
Coating
PVD
ISO Field
P,M,K,S
IC (inch)
0.394
l (inch)
0.390
R (inch)
0.039
S (inch)
0.156
Tolerance Class Insert
H
Work hand
L,R
Z efective cutting edge
2
